DSP Network Power Amplifier 2U4CH1K5W8O
$885.00 - $976.00
2 x 2000 W@4 Ω
Built-in DSP process
4.3' IPS colorful display
2U4CD1K5W8O with Dante 4x4
Applications: meeting room, clubs, small auditorium, hotel, villa.
Remark:
This price does not including freight.
Order more than 10pcs or any quenstion, please write email to us to confirm.
Standard technical features:
★Temperature monitoring, power amplifier power, current, voltage monitoring and detection
★Devices identification, remote power on and off, DSP control, networking and channels link
★Support DANTE, AES, analog input, with priority selection
★Freely set power, current limit and voltage limit, real-time impedance detection
★Dante and control signal hand in hand transmission
★Standard 4-channels FIR function, 4 x 2048 TAPS
★4.3’IPS capacitive touch screen
★USB free drive, support GPIO
★Dual RJ45 interface/TCP protocol
★Support constant voltage and constant resistance: 100V, 70V, 8 ohms, 4 ohms
★Wide voltage operation, support 180～264VAC
★Dante network 4 channels in option
Technical details:
Input Audio Source | Analog, Sine wave, Pink noise, White noise, DANTE, AES |
Input Volume | Mute, Phase, Level detector |
Input EQ | 31 bands EQ |
Input Noise Gate | Attack time 1～2895ms, Release time 1～2895ms, Threshold level -120dBu～0dBu |
DSP Matrix | 4*4 matrix zone |
Output EQ | 10 bands EQ |
Frequency Divider | Butterworth、Bessel、Linkwitz-Riley |
Delay | Input delay: 4×80ms Output delay: 20ms |
Output Compressor | Soft knee, Threshold level, Attack time, Compression ratio, Releasing time |
Output Limiter | Voltage 0.01V～89.50V, Power 0.01W～1000W, Release time 1~2895ms |
Output Volume | Mute, Phase, Level detector |
DSP Preset | 30 packages |
Control Mode | Ethernet, USB, RS485, RS232 |
Network Model | TCP/IP、1000base-T/100base-TX、RJ45 |
Channels | 4 |
Power | 4×1500W@8Ω 4×2800W@4Ω |
Bridged Power | 2×3000W@8Ω |
Minimum output impedance | Each channel 4Ω, bridged mode 8Ω |

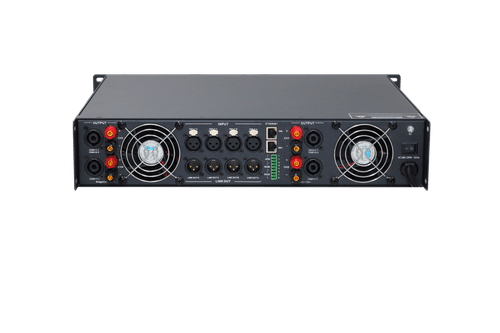

Input Interface | Balanced input 4×XLR |
Output Interface | Spoken*4, XLR×4 |

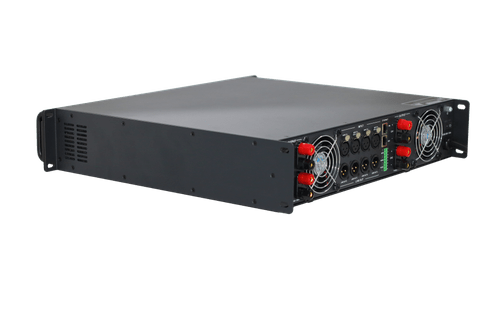

Cooling System | Dual fans intelligent control |
Gain | 6dB sensitivity: 30dB (×29.5); 0dB sensitivity: 36dB (×31.1) |
Max input level | 20dB sensitivity: 20dBu (7.75V) |
SNR | 12dB sensitivity: 94dB; 6dB sensitivity: 94dB; 0dB sensitivity: 94dB |
Frequency Response | 20Hz～20kHz (±0.5dB)@1W，8Ω |
THD+N | <0.1%@1W to full power |
Sampling | 48K/24bit |
Channel Isolation | <-70dB |
Operating Mode | Matrix, Bridge |
Remotely Control | Remote boot, standby, DSP monitor |
Amplifier Monitor | Temperature, Power, Voltage, Current |
Constant Pressure and Resistance | 100V, 70V, 8Ω, 4Ω |
DANTE in option | DANTE 4 channels |

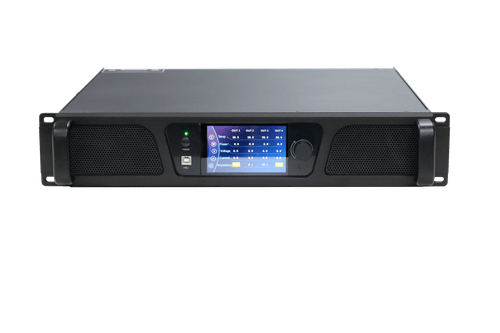

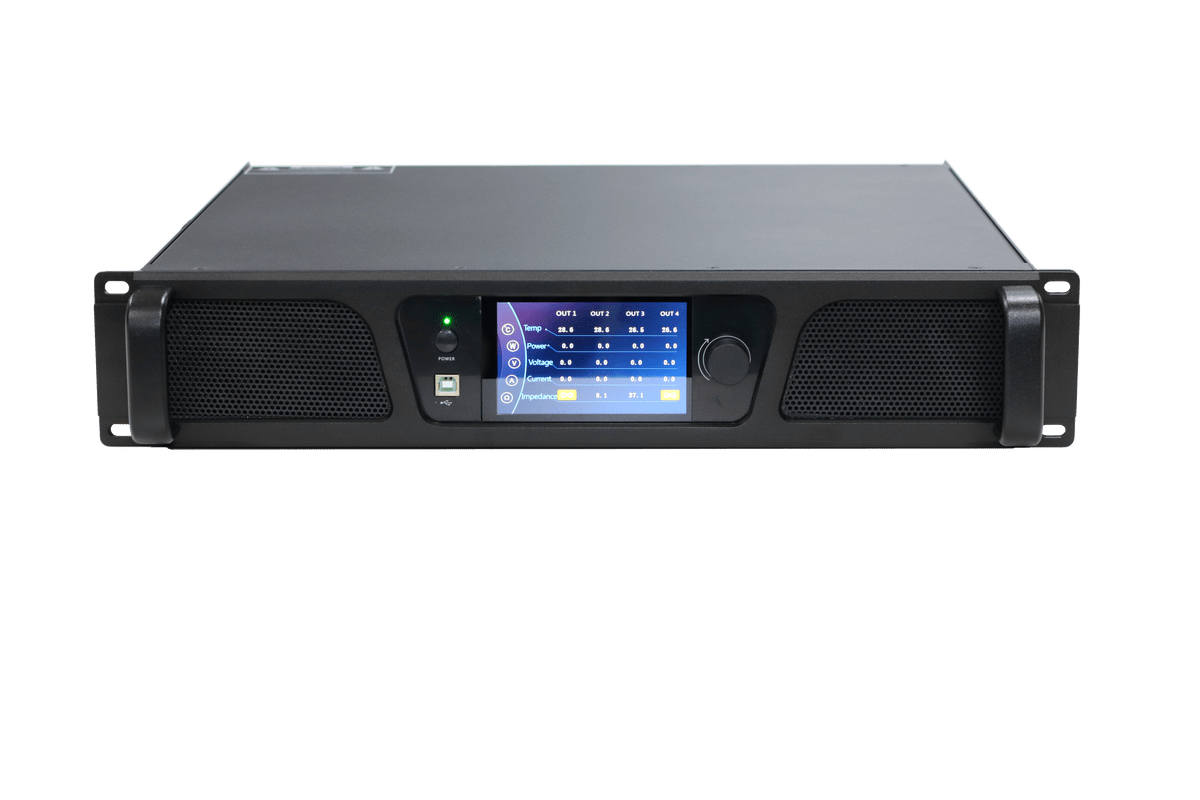

Display | 4.3”IPS colorful capacitive touch display |
Audio Source Topology | Phoenix terminal Line-out |
Protection | Audio limiter, high temperature, DC, high frequency, short circuit, back electromotive force, peak current limiter, surge current limiter, start delay, power breaker protection, power supply overvoltage/undervoltage protection |
PC Software | Mconsole for controlling all these devices: media matrix processor, audio processor, DSP power amplifier, DSP active amplifier module |
Power Supply | Supply input 180~264VAC |
Products Dimensions | 483mm*460mm*89mm, 2U |
Packaged Dimensions | 570mm*550mm*165mm |
Net Weight | 12.35kg |
Packaged Weight | 14.15kg |
