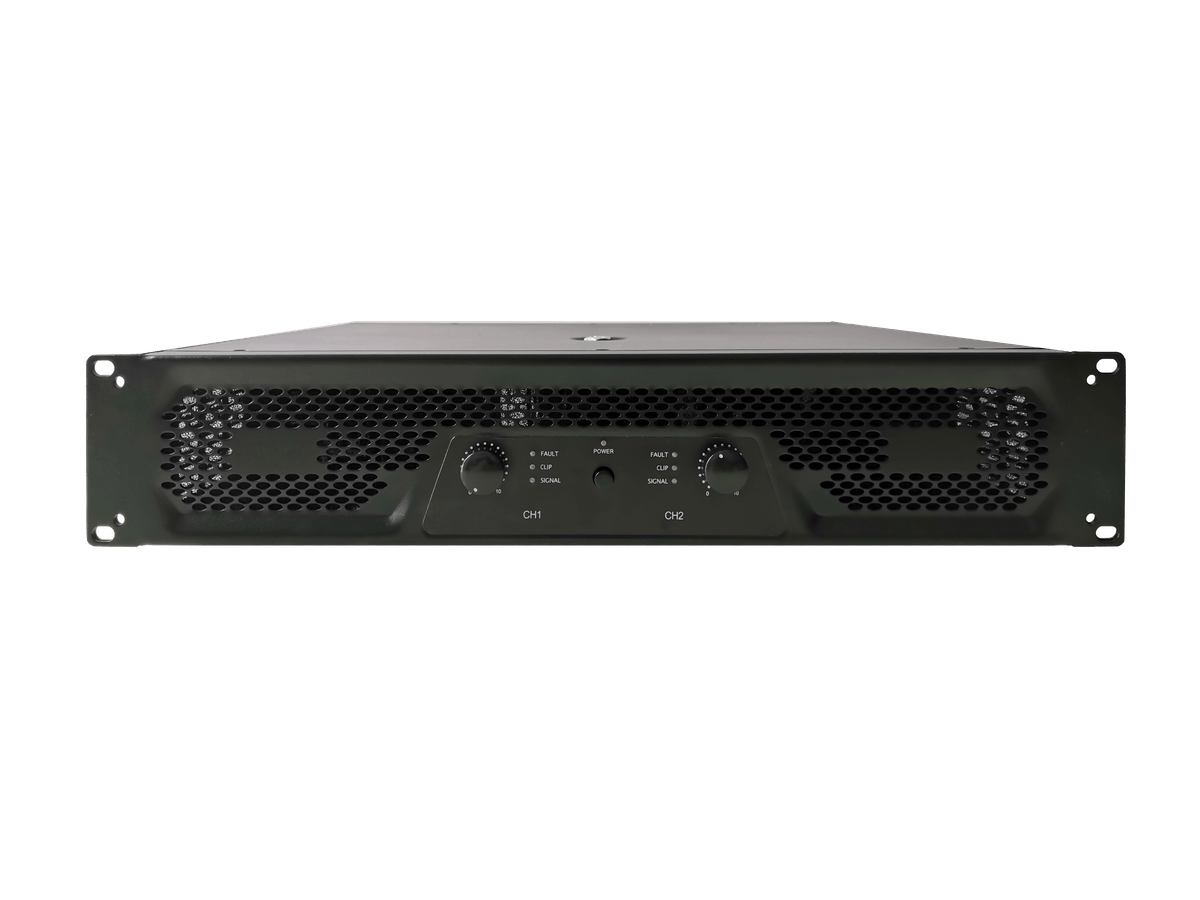

T series Class-H Stereo Power Amplifier
Application: performance, installation, meeting, hotel, outdoor
Multiple power for choice, cover most occasions :T300: 2×300Watts@8Ω, 2×410Watts@4Ω, bridge mode 820Watts
T400: 2×400Watts@8Ω, 2×535Watts@4Ω, bridge mode 1060Watts
T600: 2×600Watts@8Ω, 2×860Watts@4Ω, bridge mode 1420Watts
T800: 2×800Watts@8Ω, 2×1200Watts@4Ω, bridge mode 2000Watts
T1000: 2×1000Watts@8Ω, 2×1500Watts@4Ω, bridge mode 2600Watts
Technical data:
Input sensitive: 1V
Signal to noise: >102dB
Stereo Crosstalk: ≥60dB
Slew rate: 30v/μs
Dampling factor: ≥400
Frequency response: 20Hz～20kHz(±1dB)
THD: ≤0.01% Rated Power at 8Ω1KHz
IMD Input cmrr: ≤-75dB
Input impedance: 10K/20K Ω, unbalanced or balanced
Dimensions: 483mm×420mm×88mm (2U)
This is a professionally designed and exquisite power amplifier. It can provide accurate sound resolution, high-definition high-frequency response and impressive low-frequency control. The high-quality original device makes it have extremely low distortion and perfect and stable circuit. Current-limiting soft-start device, anti-wave-clipping pressure limit protection. Bridge output, load short circuit protection.
