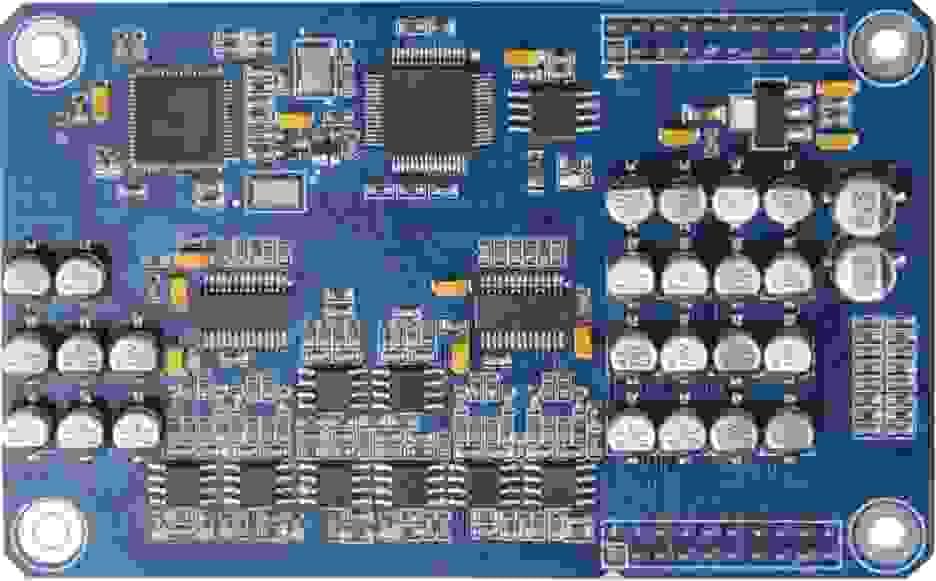

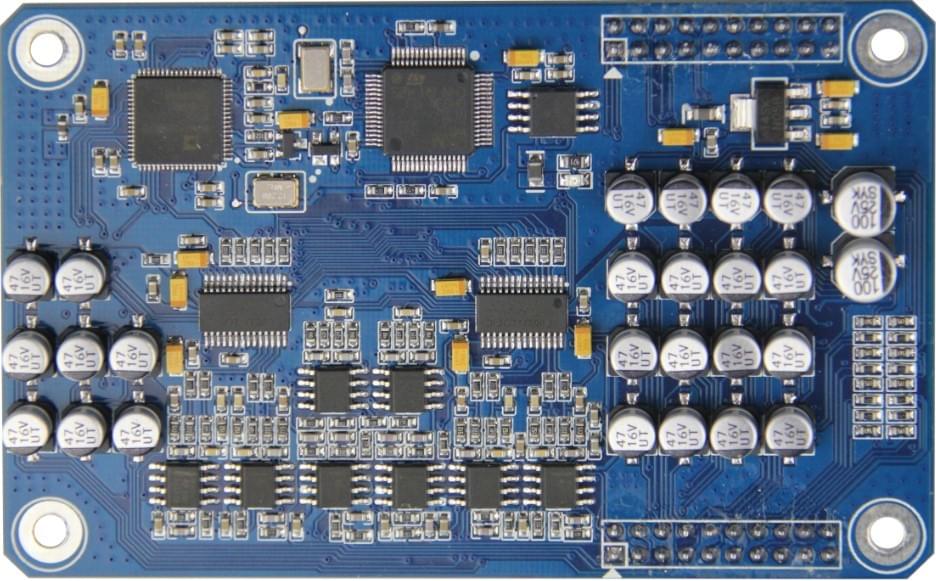

DSP Module
A professional digital audio processing module with 8 inputs and 8 outputs based on digital signal processing technology. This processing module adopts ARM processor with embedded operating system, all-digital audio processing algorithm and debugging system to achieve beautiful sound effect and simple and intuitive debugging mode, and can modify any frequency point on music or human voice.
Each input has audio processing modules such as 31 parametric equalization and noise gate, which can modify and compensate the characteristics of the sound box, making the sound reinforcement system better adapt to the acoustic characteristics of the building environment. Each output channel has 10 segments of parameter equalization, high-low pass filter, compressor and limiter, which can limit the output signal size and avoid the overload of the rear stage equipment for a long time to protect the power amplifier and speaker.
DA3088
Functions:
*8 channel analog input, 8 channel analog output, external GPIO, support connect LCD, rotary knob, button according to the function.
*24-bit，∑－△ AD/DA，48kHz sampling frequency，I2S digital audio.
*ARM processor with embedded operating system, external ADI Audio DSP.
*Each channel at the input end has noise gate, gain, phase, mute, delay and 31 segments of parameter equalization (more segments can be customized as required).
*Each channel at the output end has a high-low pass filter, delay, phase, mute, pressure limiter and 10 sections of parameter equalization (more sections can be customized as required).
*Each output has an independent pressure limiter, its start time, release time and threshold can be adjusted in a wide range.
*The high-low pass filter has multiple choices of slope and type (Butterworth, Linkwitz-Riley, Bessel): -6dB, -12dB, -18dB, -24dB, -48dB. The frequency of the filter can be adjusted at any frequency point in the audio range.
*Each output has an independent delay controller with a maximum delay time of 60ms (sampling rate of 48K).
*Abundant peripheral interface accessories can be configured into a variety of product forms: Bluetooth, wifi, USB, RS232, RS485, infrared, AES3, etc.Applications: Professional audio speaker system, Audio divider, KTV system, Stage, Entertainment bar.
