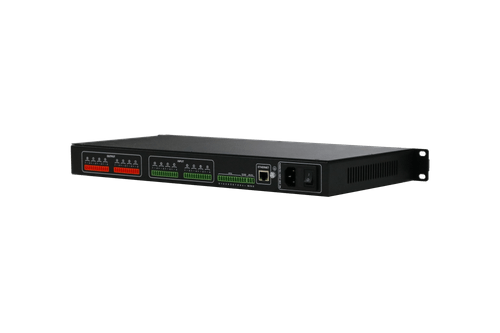

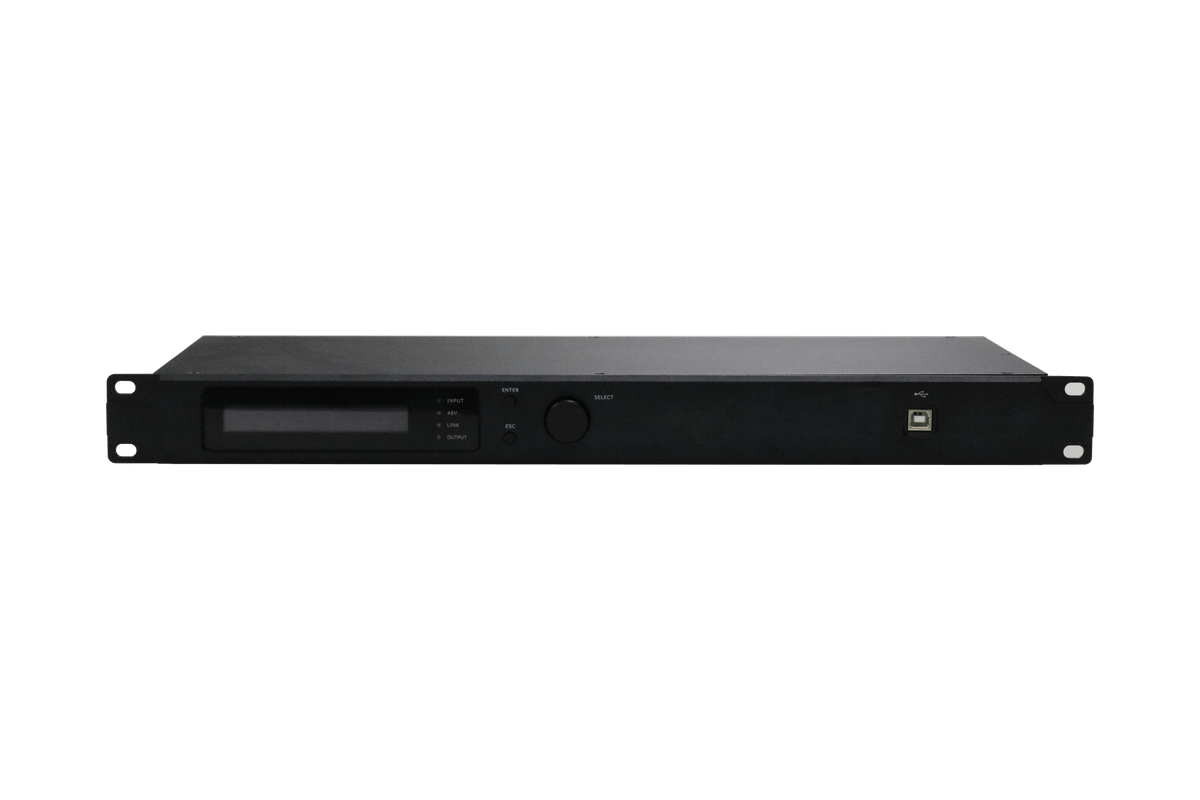

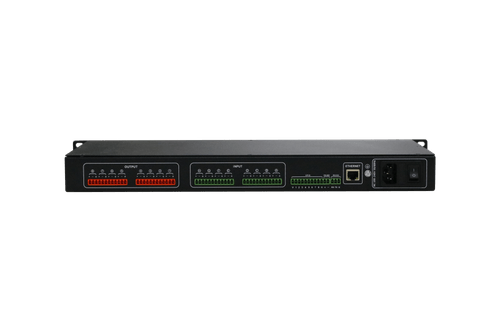

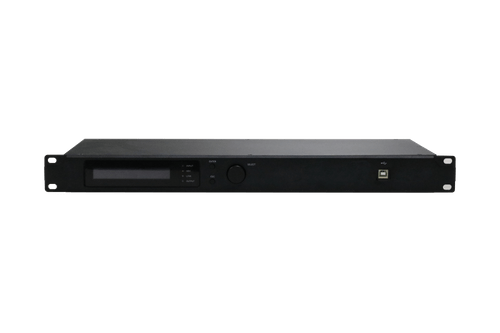

DSP Matrix Audio System 1U8IN8OUTMX
$410.00 - $430.00
Built-in DSP process
Support 48V phantom supply for condenser microphone
Input with Acoustic feedback, noise, echo control
Input with PEQ 10-bands, support 0 to 20ms delay
Output with PEQ 10-bands, support 0 to 40ms delay
1U10I10OTMX with USB sound 2x2
Remark:
This price does not including freight.
Order more than 10pcs or any quenstion, please write email to us to confirm.
Standard technical features:
★8 analog inputs and 8 analog outputs, support selecting microphone input and line put
★USB sound card 2*2 channels in option, suitable for video conference and recorded broadcast
★9 level sensitivity adjustment for each microphone, support 48V phantom power switch for each input
★With AEC(echo cancellation), ANC(noise cancellation), used for interactive video teleconference
★With AUTOMIX and matrix mixing
★With camera tracking control function, support most of camera control protocol
★Support Mconsole and mobile app TCON network control
★Control interface: USB or TCP/IP. Configured with RS232 and RS485 central control interface. Configured with GPIO external expansion control interface. Support QB01A wire control
★Support 8 channels Dante network audio input and output in option. Support Dante signal redundancy
★With AFC(feedback cancellation) , 2 level adjustment
★Input with 10 PEQ and output with 10 PEQ
★Support presets archiving and locking, hide setting parameters
Technical details:
1. DSP Chip | |
Process: | 32-bit fixed/floating-point DSP 400MHz |
System delay: | < 1.8ms |
AD/DA: | 24-bit |
2. Analog Audio Inputs and Outputs | |
Input: | 8 channels balanced. Mic/line level. Dante 4/8 channels in option. |
Input interface: | 3.81 mm Phoenix, 12-pin |
Input impedance: | 11.5KΩ |
Max input level: | 12dBu/Line, -7dBu/Mic |
Phantom supply: | +48VDC, 6.5mA, for each channel |
Output: | 8 channels balanced. Line level |
Output impedance: | 150Ω |
3. Audio Performance Specifications | |
Frequency response: | 20Hz-20kHz(+-0.5dB)/Line；20Hz-20kHz(+-1.5dB)/Mic |
THD+N: | -90dB(@12dBu,1kHz,A-wt)/Line；-86dB(@-7dBu,1kHz,A-wt)/Mic |
SNR: | 105dB(@12dBu,1kHz,A-wt)/Line；95dB(@-7dBu,1kHz,A-wt)/Mic |
4. Connect Ports and Indicators | |
USB: | Micro-B type, free driver |
RS232: | Serial port communication |
TCP/IP interface: | RJ-45 |
Indicator light: | Power, Link, +48V, Input and output signal. |
5. Electrical and Physical | |
Supply: | AC100V～240V 50/60 Hz |
Dimension: | 483mmx210mmx44mm |
Net weight: | 3.6kg |
Operating temperature: | -20℃～80℃ |
