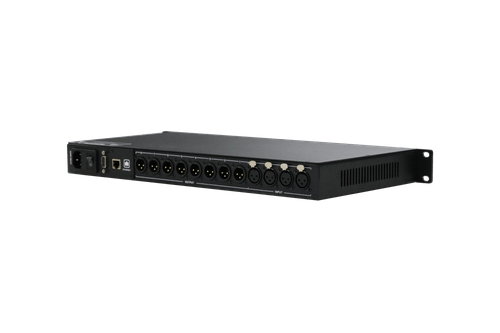

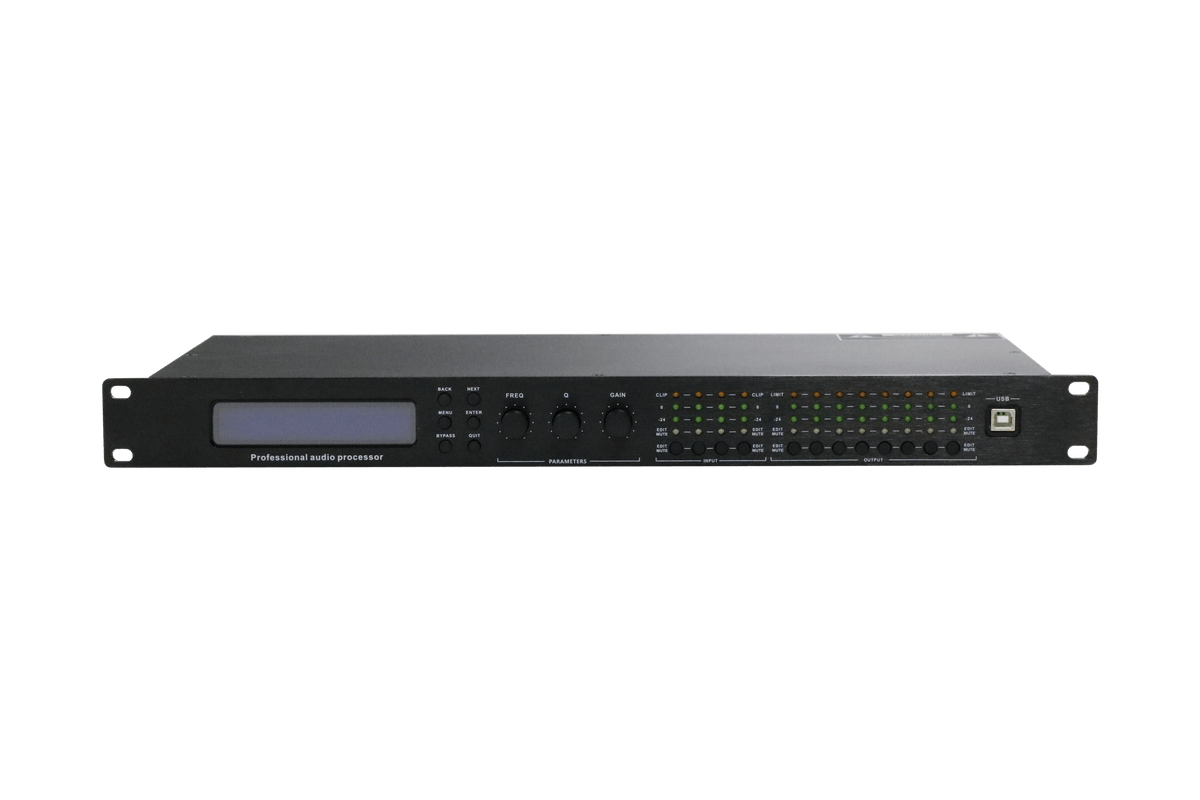

DSP Loudspeaker Management System 1U4IN8OUTDF
$449.00 - $525.00
Built-in DSP process
Input with DEQ 3-bands
Input with PEQ 15-bands
Output with PEQ 10-bands
FIR filter for each channels
1U4IN8OUDDF with Dante 4×4
Remark:
This price does not including freight.
Order more than 10pcs or any quenstion, please write email to us to confirm.
Standard technical features:
★4 analog inputs and 8 analog outputs
★96k24BIT sampling rate
★ALLpass filter
★Input with 15 PEQ, output with 10 PEQ
★Input with Dynamic 3 EQ
★Input with 4×1024Taps FIR filter
★Output with 8×512Taps FIR filter
★Support presets archiving and locking, set default parameters
★USB free drive control, support TCP/IP network control, RS232 central control
★Nice GUI Mconsole software in USB and network control
★Support mobile app TCON wireless control
Technical details:
1. DSP Chip | |
Process: | ADI SHARC 21489 |
System delay: | 1.8ms |
AD/DA: | 24-bit |
2. Analog Audio Inputs and Outputs | |
Input: | 4 channels balanced. Dante 4 channels in option. |
Input interface: | XLR |
Input impedance: | 11KΩ |
Max input level: | 16dBu/Line |
Output: | 8 channels balanced. Line level |
Output interface: | XLR |
Output impedance: | 100Ω |
3. Audio Performance Specifications | |
Frequency response: | 20Hz-40kHz(+-0.5dB)/Line |
THD+N: | -93dB(@16dBu,1kHz,A-wt)/Line |
SNR: | 109dB(@16dBu,1kHz,A-wt)/Line |

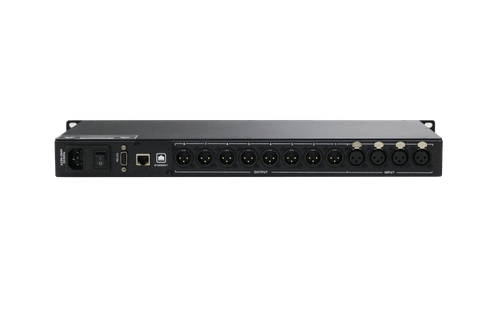

4. Connect Ports and Indicators | |
USB: | Micro-B type, free driver |
RS232: | Serial port communication |
TCP/IP interface: | RJ-45 |
Indicator light: | CLIP，LEVEL，EDIT，MUTE |
5. Electrical and Physical | |
Supply: | AC100V～240V 50/60 Hz |
Dimension: | 483mmx215mmx44.5mm |
Net weight: | 3.8kg |
Operating temperature: | -20℃～80℃ |
